Jack A5E-A Düz Makine Kısa İplik Kesicili

Ultra Powerful Motor

Remarkable 15% increasing power reaches 8.4Nm of torque, allowing you to sew heavier materials without thread breakage and lighter materials without puckering.

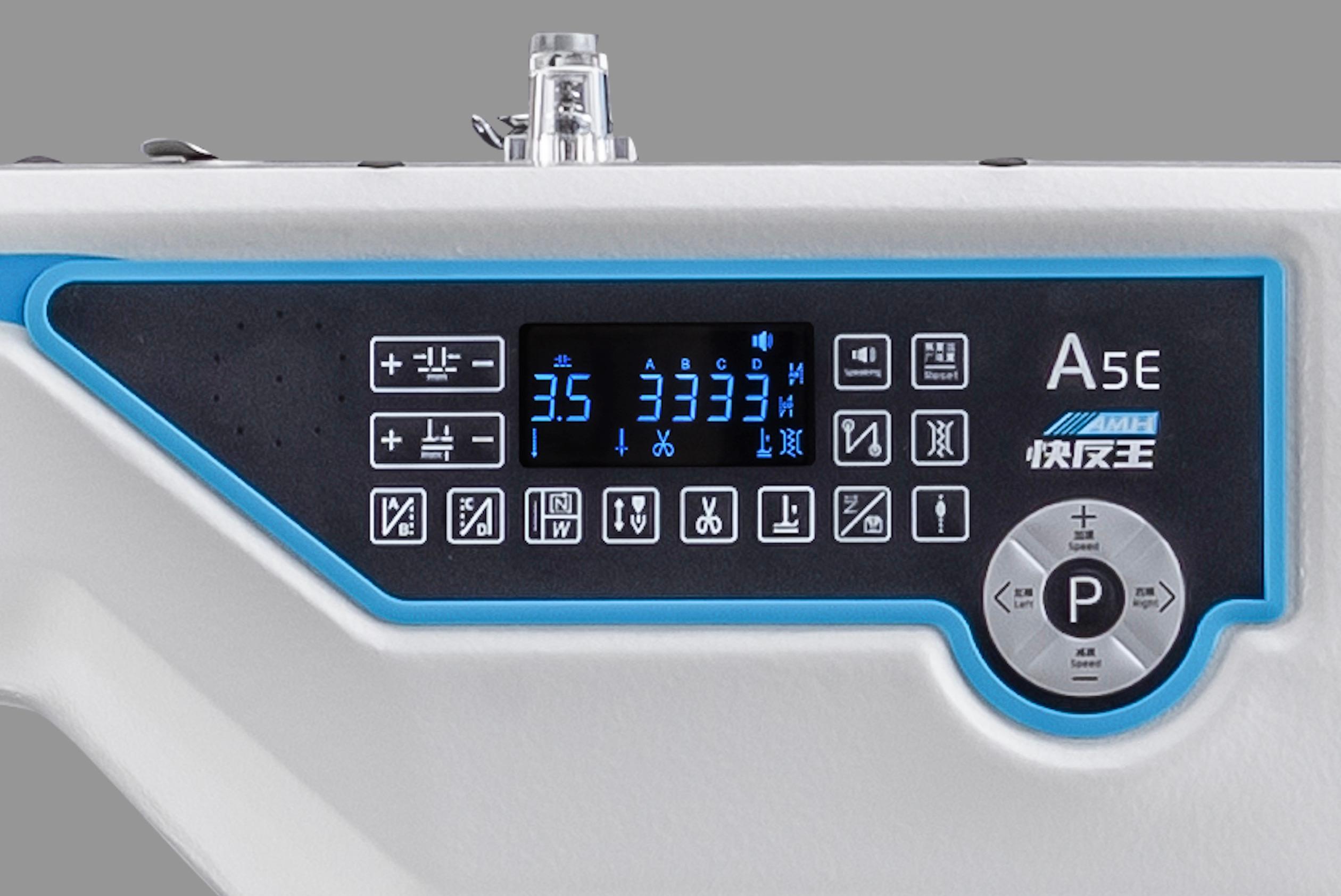

A New Pannel

Fully digital machine: automatic thread trimmer with short cut, digital silent bartack, digital presser foot lifter, digital stitch length, voice guide, ornamental patterns sewing and other standard functions.

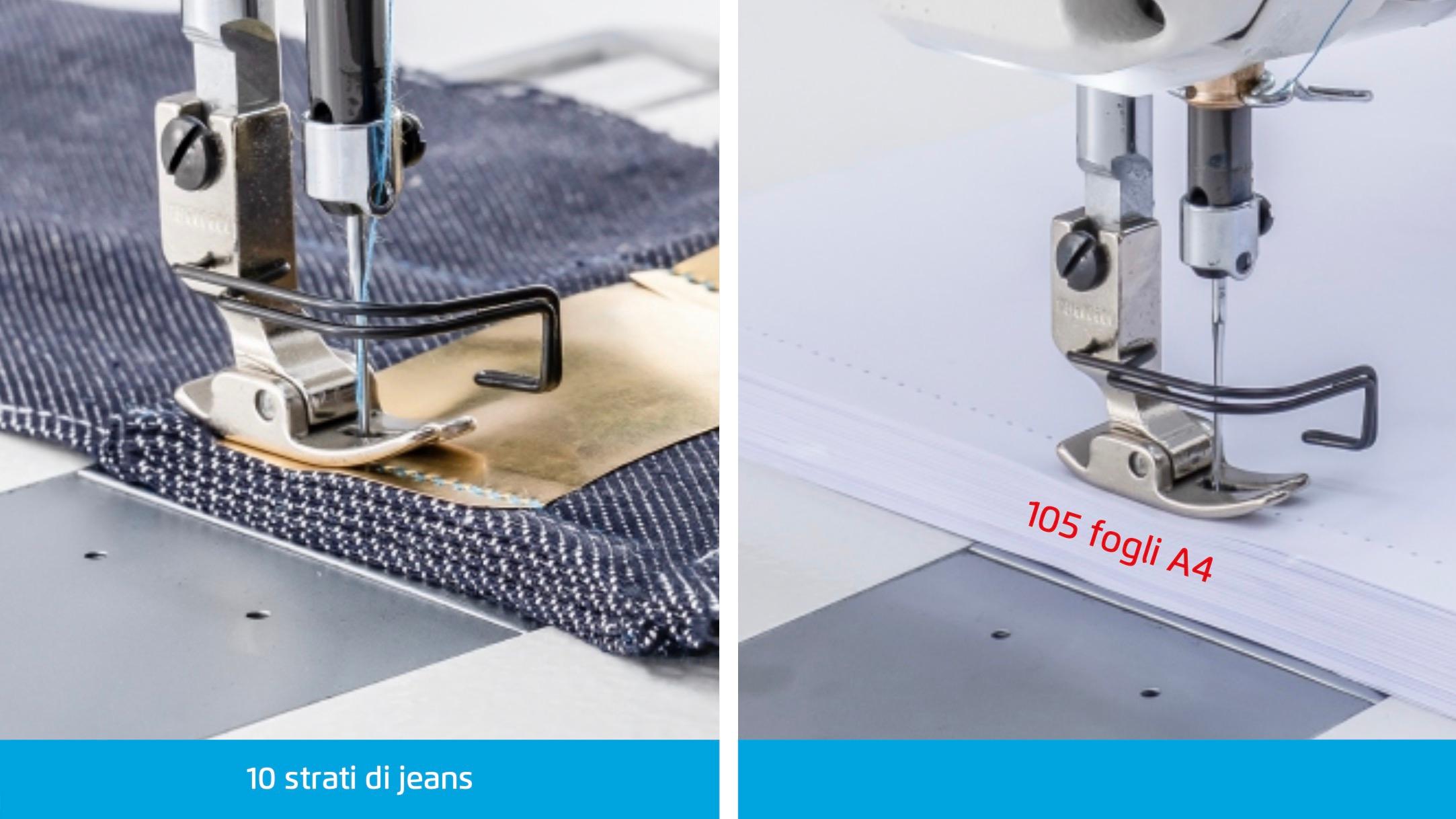

Punchering Power

The new ultra-powerful motor allows to penetrate up to 10 layers of jeans and more than 100 A4 paper sheets.

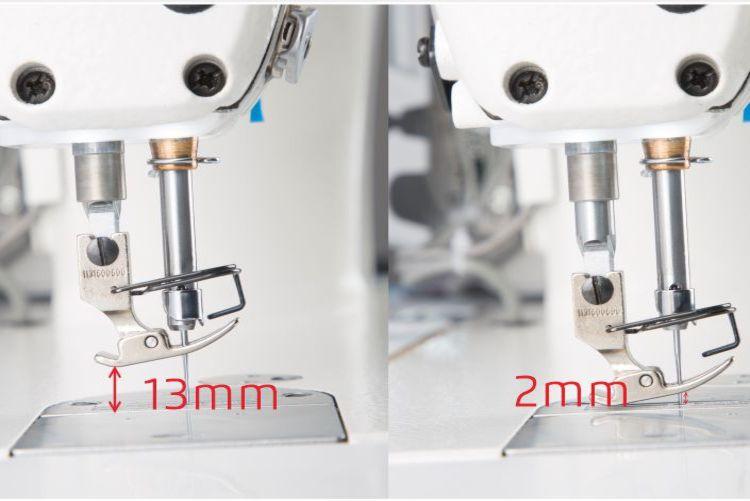

Digital Presser Foot Lifter

Presser foot lift digitally controlled by a stepper motor. It is possible with one click to adjust up to 13 levels from the panel.

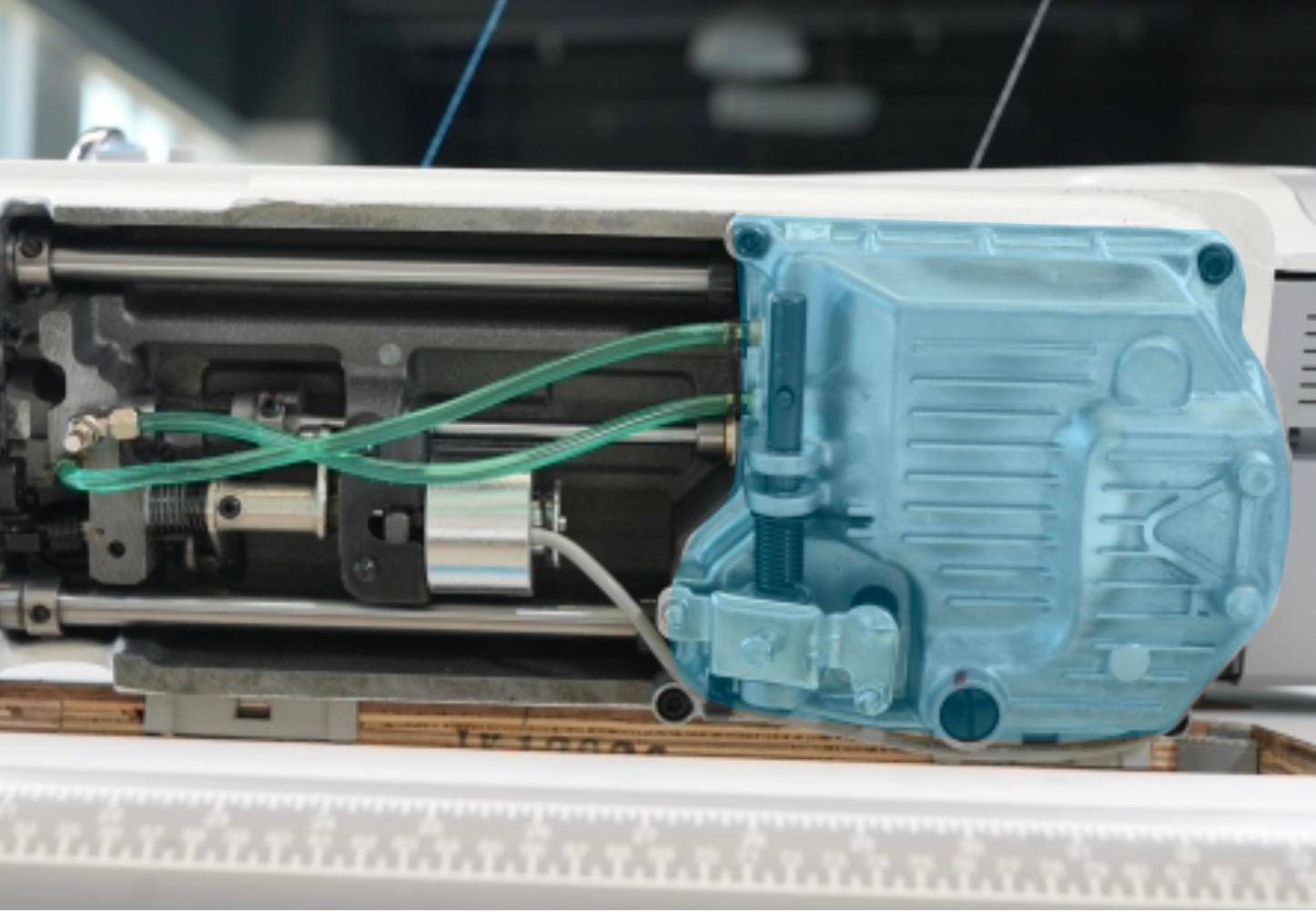

Sealed Oil Pan: No More Oil Spilling or Stains

The oil pan is sealed and prevents the entry of dust, keeping the machine clean and resistant, ensuring perfect lubrication.

305mm Big Space Underarm

Large working space, easy job insertion, even quilts, quilted jackets and small sewing programs can be sewn without any problems.

MACHINE APPLICATIONS:

• For sewing light to medium-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
• Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
• Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar

MACHINE FEATURES:

• Fully automatic lubrication with recirculating high pressure pump and oil glass indicator
• Noise and vibration absorbing table mounting
• Treadle controlled foot lifter
• Automatic reverse
• Auto-lubrication rotary hook
• Under bed thread trimmer
• Electric thread clamp (holds thread after thread trim)
• Needle positioning
• Electric foot lift
• Stitch counter
• Built-in bobbin winder
• Built -in LED light with level settings and on/off switch
• Built-in 3/4HP, 550 watt Direct Drive Motor (110v or 220v)

MACHINE SPECIFICATIONS:

• Model: A5E-A
• Needle System: DB×1 11-18#
• Applications: Suitable for sewing all kinds of small orders and quick reorders fabrics
• Use for: Heavy, Light, Elastic
• Maximum Stitch Length: 5mm
• Presser Foot Height: 1mm to 13mm
• Operating Space: 305mm x 130mm (12" x 5")
• Maximum Speed: 5000 Stitches Per Minute (SPM/RPM)
• Shipping Dimensions: 690mm x 295mm x 550mm (27" x 12" x 22")
• Weight (Net/Gross): 41KG/47KG (91LBS/104LBS)

DOWNLOADS:

• Jack A5E-A Brochure
• Jack A5E-A User Manual
• Jack A5E-A Parts Book

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

• Silent and use up to 90% less power than clutch motors
• 1/3 lighter than clutch motors
• With a flick of the switch you can reverse motor rotation
• No parts to wear out or adjust
• Lightweight, precise, and reliable

Thanks to the speed control feature, most users find the machine easier to use. Both beginner and advanced sewers find this feature helpful when stitching projects that require high-speed and precise stitching.
